HOME > PRODUCT > R302 NFC Access Reader

R302 access door reader is value leader with state-of-the-art design for access control solution, which integrate keypad for flexible working mode operation. Its efficient signalization system makes sure that the reader is easily seen. R302 is fully featured high frequency  reader to support broadest ranges technology 13.56MHz including ISO14443A/B, ISO15693, and  MIFARE®, even Mifare  plus and DESFire EV1. What's more, original impact design provide ease of installation in various door access indoor and outdoor applications.


Hightlights

  • Providing flexibility in credential model choices with multi RF card as 13.56MHz ISO14443A/B, Mifare®Classic S50/S70, Mifare® plus, Mifare Desfire® EV1, ISO15693, Sony Felica,EM125KHz

  • Popular & Smart mobile phone access control solution in ISO/IEC18092 NFC

  • NXP original RF chip and 128bit AES,DES/3DES high encryption algorithm integration to avoid cloning and copy

  • Reading distance can up to 5~10cm( Depending on antenna)

  • Diversified communication interface as RS232/RS485, TCP/IP and Weigand 26,34,40,42,50,56,58 universal wiegand protocol output to flexibly integrate into any other third party system

  •  Wide voltage range design 9~24V for different system

  • POE( IEEE 802.3af)  to eliminate the need for large numbers of AC power supplies or the installation of new AC outlets at the remote modes

  • Various kinds of working modes as multi RFID cards, NFC smart phone, PIN

  • Firmware online upgrade to obtain latest system at the first time

  • APB(anti-passing back) function to avoid illegal following

  • Appearance design with XID patent

  • IP65 waterproof for indoor and outdoor harsh environment use

  • Strong environmental adaptability -20℃~60℃

  • Authorized certification CE, Rohs, CCC, FCC

  • One year warranty time (not being damaged by any man-made factors)



                                                                                                           R302 Access Door Reader

Model NameR30201R30202R30203R30204R30205
Bluetooth4.0--------
PoE( IEEE 802.3af)------
RS232/485
TCP/IP----
Weigand26,34,40,42,50,56,58
ISO14443A MIFARE®
MIFARE®,DESFire® EV1
MIFARE®,MIFARE Plus®


ISO14443B


Sony FeliCa™
MIFARE Ultralight®
MIFARE UltralightC®
ISO18092 NFC--
ISO15693--
125 kHz Card Compatibility--
Operating Voltage Range9-24V DC
Typical Read Range*(inches)MIFARE:4" (10cm) depending on your transponder
Keypad4x3 keypads with backlight, Doorbell
Sound &InterfaceBuzzer and multi-color LED
APBYes, anti-passing back function to connect controller
Operation ModeRFID Card, Password
Environmental RatingUL 294 Outdoor Rated, IP65 waterproof
Panel ConnectionTerminal Strip
Operating Temperature-32˚ to 131˚ F (0˚ to 55˚  C)
Storage  Temperature-4˚ to 140˚ F (-20˚ to 60˚  C)
Operating Humidity5% to 95% relative humidity non-condensing
Dimensions5.2" x 2.4" x 0.9"(132mm x 62mm x 23mm)
CertificationsFCC Certification (US), CE(EU)
Housing MaterialUL94  Polycarbonate


-- :  Option
■:   Standard Configuration
Specifications are subject to change without notice.

Access Control

Club / Loyalty System

Parking system

Printer Secure audit system

Small-to-large sized organizations,Factory, School


Configuration

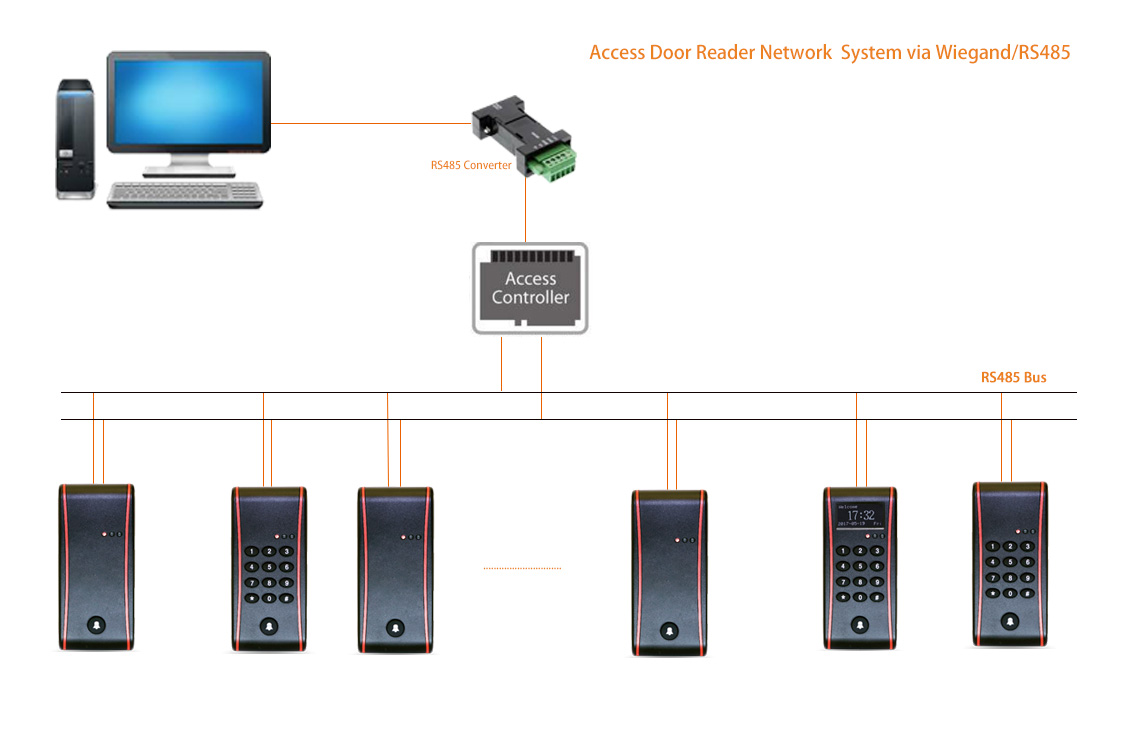

R系列 configuration RS485.jpg

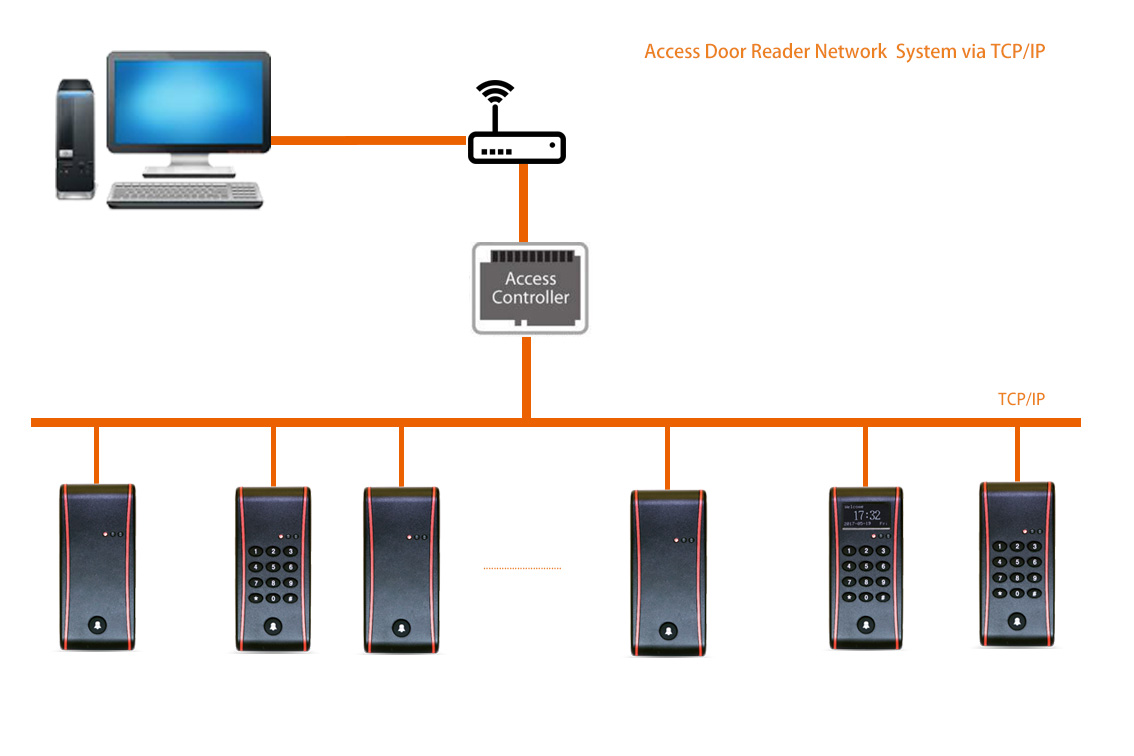

R系列 configuration TCP IP.jpg


Document Name Release Date Download
R302 Datasheet Oct-19-2016 download
R300 series CE Certificate Jan-19-2017 download
R300 series datasheet Sep-20-2017 download
