R303 access door reader is value leader with state-of-the-art design for access control solution, which integrate keypad and OLED as optional for flexible operation. Its efficient signalization system makes sure that the reader is easily seen. R303 is fully featured high frequency  reader to support broadest ranges technology 13.56MHz including ISO14443A/B, ISO15693, and  MIFARE®, even Mifare  plus and DESFire EV1. What's more, original impact design provide ease of installation in various door access indoor and outdoor applications.


  • Providing flexibility in credential model choices with multi RF card as 13.56MHz ISO14443A/B, Mifare®Classic S50/S70, Mifare® plus, Mifare Desfire® EV1, ISO15693, Sony Felica,EM125KHz

  • Popular & Smart mobile phone access control solution in ISO/IEC18092 NFC

  • NXP original RF chip and 128bit AES,DES/3DES high encryption algorithm integration to avoid cloning and copy

  • Reading distance can up to 5~10cm( Depending on antenna)

  • Diversified communication interface as RS232/RS485, TCP/IP and Weigand 26,34,40,42,50,56,58 universal wiegand protocol output to flexibly integrate into any other third party system

  •  Wide voltage range design 9~24V for different system

  • POE( IEEE 802.3af)  to eliminate the need for large numbers of AC power supplies or the installation of new AC outlets at the remote modes

  • Various kinds of working modes as multi RFID cards, NFC smart phone, PIN

  • OLED display to realize wide angle, high contrast, quick response and wide color field display(visible in sunlight)

  • Firmware online upgrade to obtain latest system at the first time

  • APB(anti-passing back) function to avoid illegal following

  • Appearance design with XID patent

  • IP65 waterproof for indoor and outdoor harsh environment use

  • Strong environmental adaptability -20℃~60℃

  • Authorized certification CE, Rohs, CCC, FCC

  • One year warranty time (not being damaged by any man-made factors)


                                                                               R303 Access Door Reader

Model NameR30301R30302R30303R30304R30305
PoE( IEEE 802.3af)------


Sony FeliCa™
MIFARE Ultralight®
MIFARE UltralightC®
ISO18092 NFC--
125 kHz Card Compatibility--
Operating Voltage Range9-24V DC
Typical Read Range*(inches)MIFARE:4" (10cm)
Display128 x 64 OLED(1.54")
Keypad4x3 keypads with backlight, Doorbell
Sound &InterfaceBuzzer and multi-color LED
APBYes, anti-passing back function to connect controller
Operation ModeRFID Card, Password
Environmental RatingUL 294 Outdoor Rated, IP65 waterproof
Panel ConnectionTerminal Strip
Operating Temperature-32˚ to 131˚ F (0˚ to 55˚  C)
Storage  Temperature-4˚ to 140˚ F (-20˚ to 60˚  C)
Operating Humidity5% to 95% relative humidity non-condensing
Dimensions5.2" x 2.4" x 0.9"(132mm x 62mm x 23mm)
CertificationsFCC Certification (US), CE(EU)
Housing MaterialUL94  Polycarbonate

--: Option
■: Standard Configuration
Specifications are subject to change without notice.

Access Control

Club / Loyalty System

Parking system

Printer Secure audit system

Small-to-large sized organizations,Factory, School

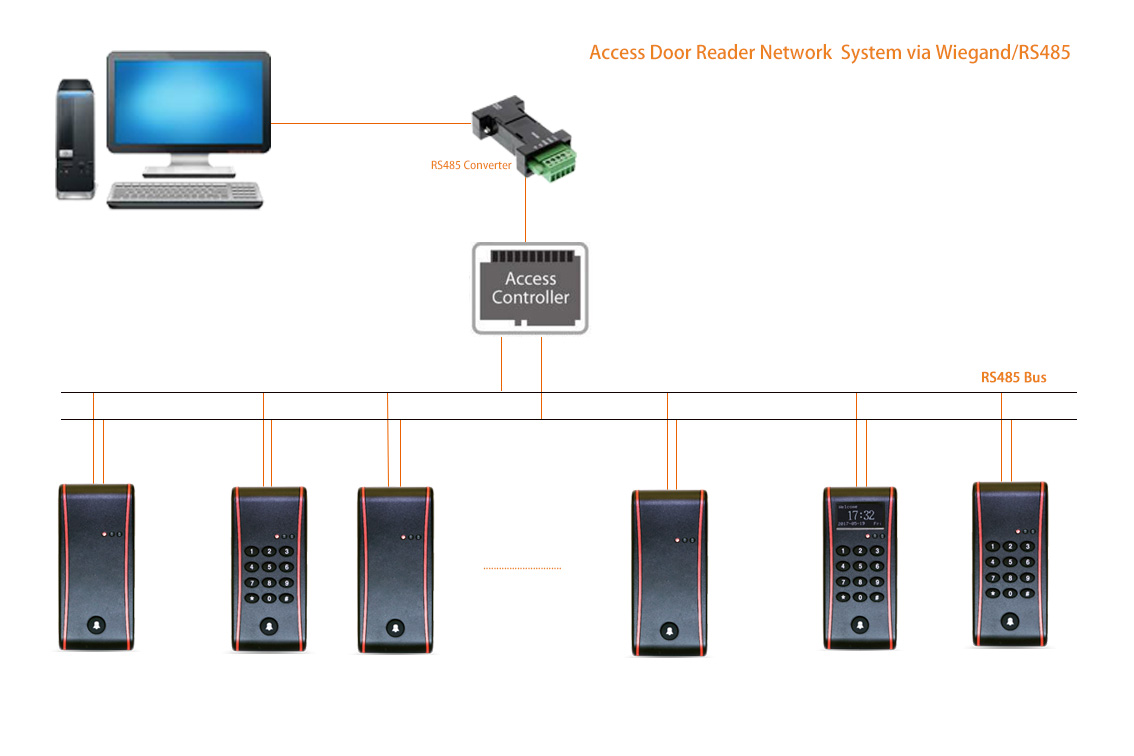

R系列 configuration RS485.jpg

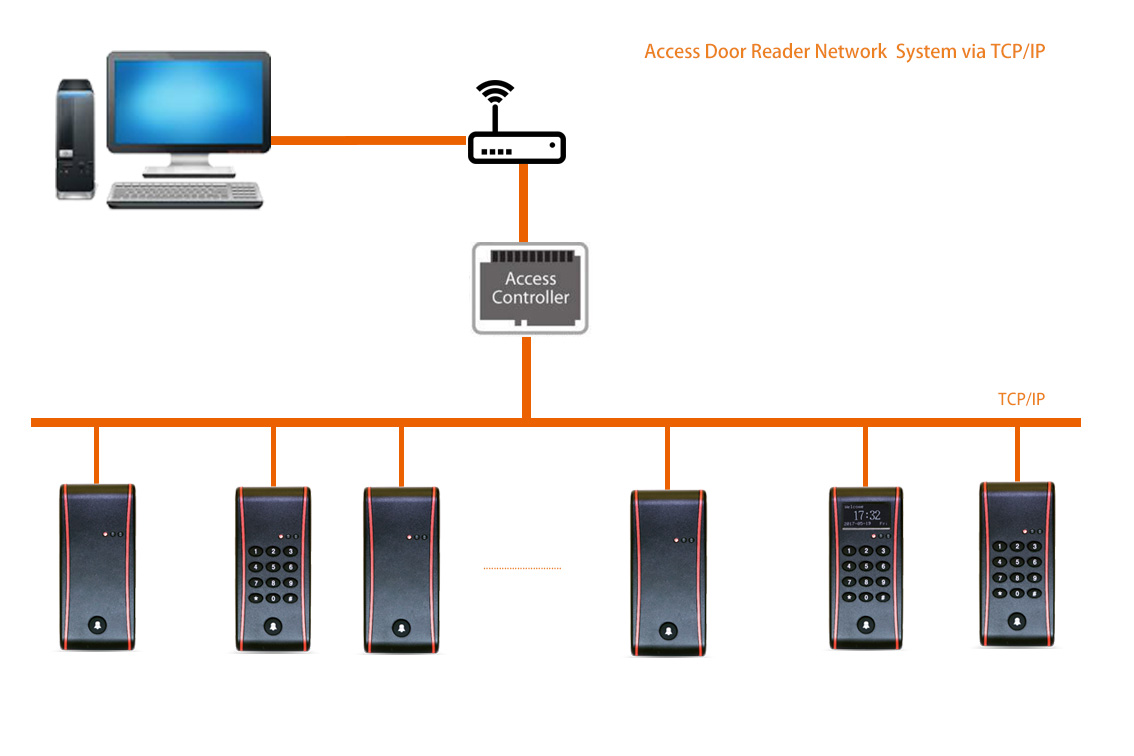

R系列 configuration TCP IP.jpg

Document Name Release Date Download
R303 Datasheet Oct-19-2016 download
R300 series CE Certificate Jan-19-2017 download
R300 series datasheet Sep-20-2017 download
