HOME > PRODUCT > C302 DESFire Access Controller

C302 is high level standalone access control solution with multi working modes for various access places application such as hotel, classroom, hospital, car packing etc.  It is equipped with a keypad and  multi RF card  supporting  module to operate in standalone mode by connecting some  external sources as door lock, exit switch,  alarm and door sensor to the relay contacts.  This durable keypad is also  backlight  for ease of use in  low lighting conditions.  The features with wigand input/output realize external reader/coontroller flexible connection.


  • Providing flexibility in credential model choices with multi RF card as 13.56MHz ISO14443A/B, Mifare®Classic S50/S70, Mifare® plus, Mifare Desfire® EV1, ISO15693, Sony Felica,EM125KHz

  • Popular & Smart mobile phone access control solution in ISO/IEC18092 NFC

  • NXP original RF chip and 128bit AES,DES/3DES high encryption algorithm integration to avoid cloning and copy

  • Diversified communication interface as RS232/RS485, TCP/IP to flexibly integrate into any other third party reader and controller

  • Wide voltage range design 9~24V for different system

  • POE( IEEE 802.3af) to eliminate the need for large numbers of AC power supplies or the installation of new AC outlets at the remote modes

  • Network configuration: work in DHCP or static IP network to realize plug & play installation

  • Various kinds of working modes as multi RFID cards, NFC smart phone, PIN

  • Manage 20,000 cardholder/ user credentials card, Inquiry recent 150,000 events

  • Firmware online upgrade to obtain latest system at the first time

  • Appearance design with XID patent

  • IP65 waterproof for indoor and outdoor harsh environment use

  • Strong environmental adaptability -20℃~60℃

  • Authorized certification CE, Rohs, CCC, FCC

  • One year warranty time (not being damaged by any man-made factors)

                                                                     C302 Access Control and Time Attendance Terminal

Model NameC30201C30202C30203C30204C30205Option



Sony FeliCa™

MIFARE Ultralight®,

MIFARE UltralightC®

ISO15693Option item can be customized on above models*
125 kHz Card CompatibilityOption item can be customized on above models*
Operating Voltage Range9-24V DC
Typical Read Range*(inches)MIFARE:4" (10cm)
Keypad4x3 keypads with backlight, Doorbell
Input device 2 inputs (push button, door state sensor)
Output device2 relay outputs (lock, alarm)
Sound &InterfaceBuzzer and multi-color LED
APBYes, anti-passing back function with wiegand external reader
Operation ModeRFID Card, Password
User Capacity10,000 users
Log Capacity100,000 events
Alarm1.Door non-closed detection      2.Housing sabotage alarm
3. Door broken alarm                4.Duress alarm in case of emergency
5.90% full of memory
Environmental RatingUL 294 Outdoor Rated
Panel ConnectionPigtail or Terminal Strip
Operating Temperature-32˚ to 131˚ F (0˚ to 55˚  C)
Storage  Temperature-4˚ to 140˚ F (-20˚ to 60˚  C)
Operating Humidity5% to 95% relative humidity non-condensing
Dimensions5.2" x 2.4" x 0.9"(132mm x 62mm x 23mm)
CertificationsFCC Certification (US), CE (EU),
Housing MaterialUL94  Polycarbonate

* :  Option
■:  Standard Configuration
Specifications are subject to change without notice.

● Access Control

● Club / Loyalty System

● Parking system

● Printer Secure audit system

● Small-to-large sized organizations Factory, School

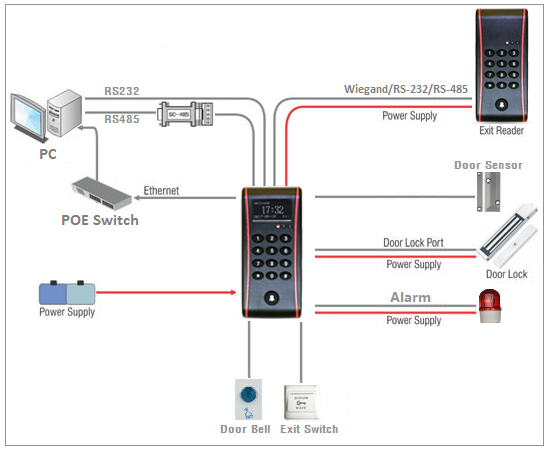

Connection diagram.jpg

Document Name Release Date Download
C300 series datasheet Sep-20-2017 download
