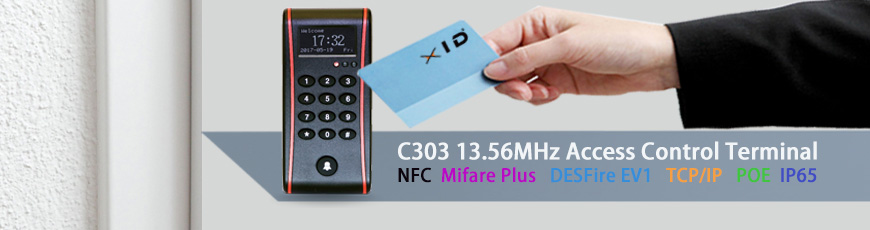

C303 is high level access control and time attendance terminal for stand-alone or network solution in various access places as hotel, classroom, hospital, car packing etc. It features white OLED and keypad for diversified working modes andworks  with an external  reader  for  anti-passing back (Wiegand  port) for high security. Fully open robust  and  strong  platform  with API  and cross Compile  for  embedded  GUI software  development. What’s more, C303 support future enhancements in access control & other applications,  including  XID Mobile  Access  powered by APK that enables  the use of smartphones and other smart  devices to open doors.


Highlights

  • Providing flexibility in credential model choices with multi RF card as 13.56MHz ISO14443A/B, Mifare®Classic S50/S70, Mifare® plus, Mifare Desfire® EV1, ISO15693, Sony Felica,EM125KHz

  • Popular & Smart mobile phone access control solution in ISO/IEC18092 NFC

  • NXP original RF chip and 128bit AES,DES/3DES high encryption algorithm integration to avoid cloning and copy

  • Diversified communication interface as RS232/RS485, TCP/IP to flexibly integrate into any other third party reader and controller

  • Wide voltage range design 9~24V for different system

  • POE( IEEE 802.3af) to eliminate the need for large numbers of AC power supplies or the installation of new AC outlets at the remote modes

  • Network configuration: work in DHCP or static IP network to realize plug & play installation

  • Various kinds of working modes as multi RFID cards, NFC smart phone, PIN

  • OLED display to realize wide angle, high contrast, quick response and wide color field display(visible in sunlight)

  • Manage 20,000 cardholder/ user credentials card, Inquiry recent 150,000 events

  • Firmware online upgrade to obtain latest system at the first time

  • Appearance design with XID patent

  • IP65 waterproof for indoor and outdoor harsh environment use

  • Strong environmental adaptability -20℃~60℃

  • Authorized certification CE, Rohs, CCC, FCC

  • One year warranty time (not being damaged by any man-made factors)



                                                               C303 Intelligent Access Control and Time Attendance Terminal

Model NameC30301C30302C30303C30304C30305
Bluetooth4.0--------
PoE( IEEE 802.3af)------
RS232/485
TCP/IP----
Weigand26,34,40,42,50,56,58
ISO14443A MIFARE®
MIFARE®,DESFire® EV1
MIFARE®,MIFARE Plus®


ISO14443B


Sony FeliCa™
MIFARE Ultralight®,
MIFARE UltralightC®
ISO18092 NFC--
ISO15693--
125 kHz Card Compatibility--
Operating Voltage Range9-24V DC
Typical Read Range*(inches)MIFARE:4" (10cm)
Display128 x 64 OLED(1.54")
Keypad4x3 keypads with backlight, Doorbell
 Input device 2 inputs (push button, door state sensor)
Output device2 relay outputs (lock, alarm)
Sound &InterfaceBuzzer and multi-color LED
APBYes, anti-passing back function with wiegand external reader
Operation ModeBluetooth(Mobile phone),RFID Card, Password
User Capacity10,000 users
Log Capacity100,000 events
Time zone16 time group (each time group has 8 days including one holiday and each  day has 5 time schedule)
Alarm1.Door non-closed detection      2.Housing sabotage alarm
3. Door broken alarm                4.Duress alarm in case of emergency
5.90% full of memory
Environmental RatingUL 294 Outdoor Rated
Panel ConnectionPigtail or Terminal Strip
Operating Temperature-32˚ to 131˚ F (0˚ to 55˚  C)
Storage  Temperature-4˚ to 140˚ F (-20˚ to 60˚  C)
Operating Humidity5% to 95% relative humidity non-condensing
Dimensions5.2" x 2.4" x 0.9"(132mm x 62mm x 23mm)
CertificationsFCC Certification (US), CE (EU),
Housing MaterialUL94  Polycarbonate

-- :  Option
■:  Standard Configuration
Specifications are subject to change without notice.

●  Access Control

●  Time Attendance

●  Club / Loyalty System

●  Parking system

●  Printer Secure audit system

●  Small-to-large sized organizations,Factory, School


Configuration

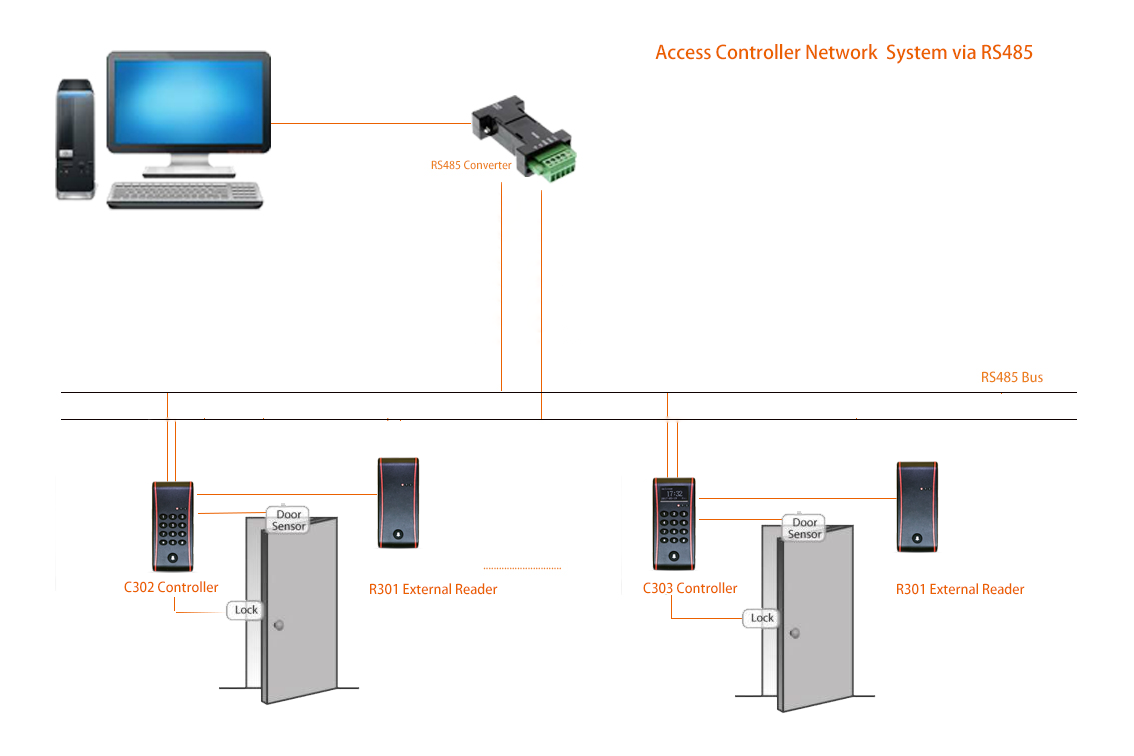

C系列 configuration RS485.png

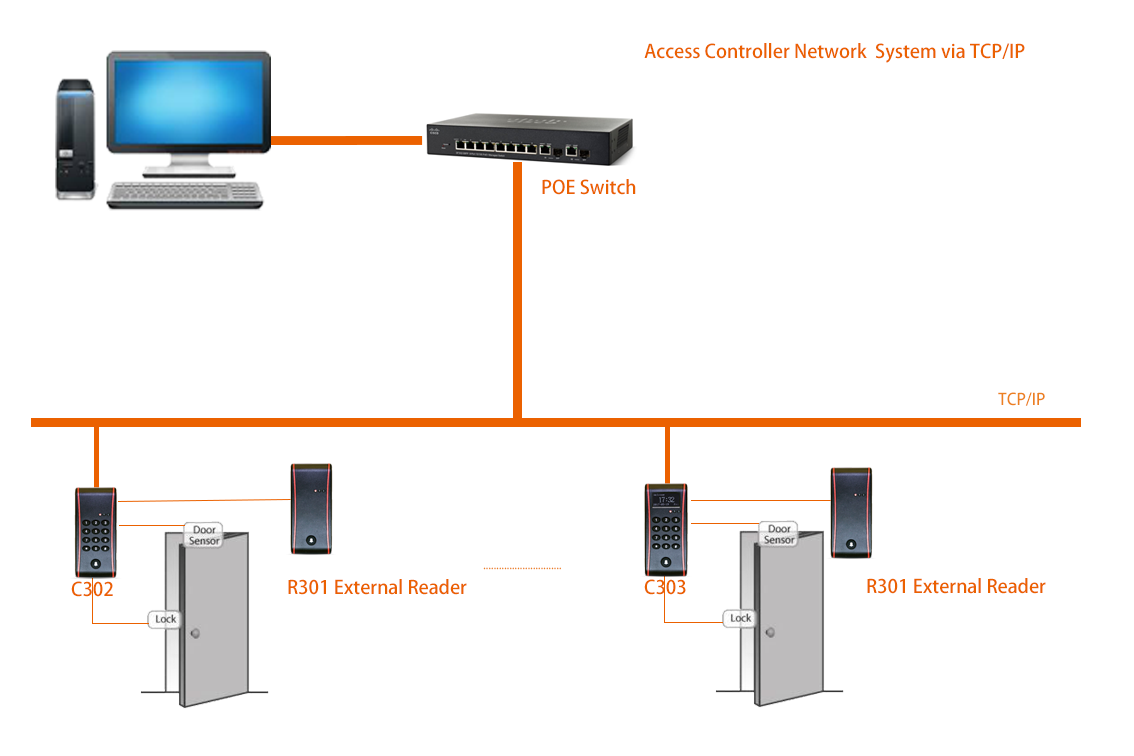

C系列 configuration TCP IP.png







Document Name Release Date Download
C300 series datasheet Sep-20-2017 download
