XID dedicates to design&research intelligent network electronic door lock based on RFID and Bluetooth fashionable technology, which realize market-oriented, easy to install, high stability TCP/IP POE locking system.The compact structure by TCP/IP POE door lock, POE switch and related software, and simple system wiring via RJ45 communication and power supply can be easily used in different using environment as student apartment, staff quarters, office buildings, office buildings, star hotel,laboratory, nursing homes and other places.


The advantage for TCP/IP POE LOCK

● The compact system structure: TCP/IP POE lock, POE switch and system software

● The simple system wiring, installation and debugging, RJ45 communication and power supply to avoid complex power and power line.

● High stability via TCP/IP communication compare with RS485 traditional lock

● The low operation cost due to wired power supply mode


Main Functions
● The real time clock inside record staff card information, door lock state and lock handling type
● The available external magnetic door realize real time monitoring

● Remote control to open, close and active normally open function

● Available to connect exit button

● Time group control function to operate segmented control in and out for staff

● Multi alarm functions as illegal intrusion, fire control linkage

● Standalone and Network mode, which can be automatically switch in different system environment

● 13.56MHz RFID card as Mifare (S50/S70), CPU card etc

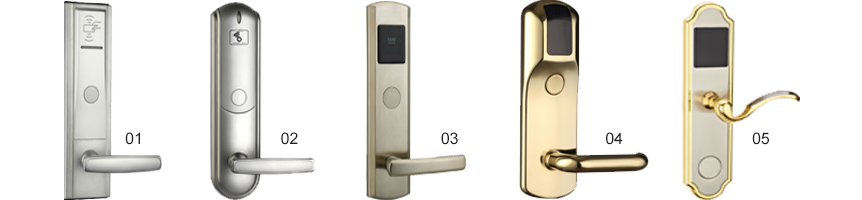

● Multi lock exteriors can be selected

Network lock.png



Model NameL303 TCP POE Network Hotel Lock
CPU                            32 ARM
Operating systemRtos
Power monitoringLock stop working under low power to ensure the stability
WatchdogInside watchdog to avoid system crashed
CommunicationTCP/IP 10/100M
Power supplyPOE(48V), IEEE802.3AT
Current<=50mA
Contactless card supporting13.56MHz ISO14443A Mifare(S50,S70)
Reading Speed<=0.3S
Reading Distance>=3cm
Card Capacity512pcs
Events Capacity768
Record Uploading>=80events/s
Records TypesReading cards, Un-registed card, Exit button, Door half-open, fire-control etc
Wording ModesRFID Card, Button, Remote Computer
Time Zone16 time group (each time group has 8 days including one holiday and each  day has 5 time schedule)
Size for PCB Board5.5*4.8cm


●Home

●Hotel

●Club

●Washing house

●Gym Room

Network Management.pngLock configuration.jpg




Document Name Release Date Download
L303 TCP POE Network Hotel Lock Feb-14-2017 download
