XID dedicates to design&research intelligent network electronic door lock based on RFID fashionable technology, which realize market-oriented, easy to install, high stability standalone locking system. It can be easily used in different using environment as student apartment, staff quarters, office buildings, office buildings, star hotel,laboratory, nursing homes and other places.


The advantage for standalone Hotel Lock

●Fashionable design

●Anti-violence opening, thicker than ordinary ones in market

●Plastic cover treated for anti-scratch by card-swiping

●2mm built-in steel panel to reinforce solidity of lock and reliable anti-burglar

●Suitable for hotels, high-grade offices and households use

●US standard five-latch mortise with anti-pick function



Main Functions

● Available to connect exit button

● Time group control function to operate segmented control in and out for staff

● Multi alarm functions as illegal intrusion, fire control linkage

● Standalone mode to ease system insatllation and configuration

● 13.56MHz RFID card as Mifare (S50/S70), CPU card etc

● Multi Lock exterior can be selected

standalone lock.png

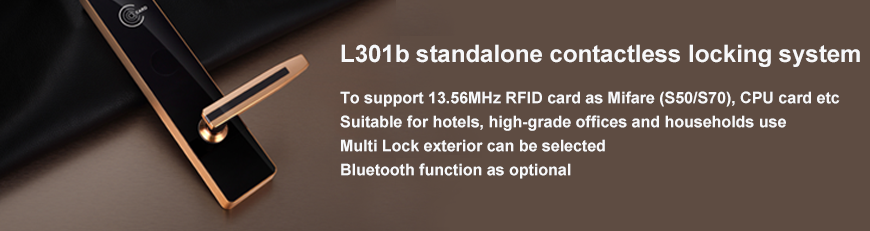

Model NameL301b Standalone Lock
Battery lifespan>15,000 times
Non operating current rating>27μA
Operating current rating<500mA, single-run 0.2 seconds
Environment temperatures-25 to 60°C
Working humidity15 to 95%RH
Incuctive distance0 to 5cm
Inductive sensitivity<0.2 second, 100% effective and accurate to read card
Anti-static>15,000V(instant)
MaterialsStainless stell and zinc-alloy
FinishingStainless stell
Thickness(mm)7.5mm(estimation)
Width(mm)130mm with curved end(estimation)
Effective time of opening lock6 seconds
Alert point of low voltage
(beep and red light)
4.7V, another 100 times of door opening after low battery alert
Data queryAudit trail records last 1000 unlocking transactions
Meachanical keyStandard over-ride to ensure door to be unlocked in emergency
Door thickness supported38 to 80mm

















●Home

●Hotel

●Club

●Washing house

●Gym Room






Document Name Release Date Download
L301 Standalone Locking System Jan-23-2018 download
