R201 mini access door reader design for mulit 13.56MHz RFID cards operation with flexible communication interface for other system integration and connection.

    • Providing flexibility in credential model choices with multi RF card as ISO15693(CSN) and ISO14443A/B(CSN) Data reverse output / Read&Write

    • NXP original RF chip to enhance high security and avoid cloning

    • Reading distance can up to 5~10cm( Depending on antenna)

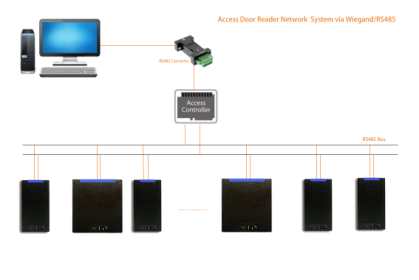

    • Diversified communication interface as RS232,RS485,TTL,Weigand 26,34,40,42,50,56,58 universal wiegand protocol output to flexibly integrate into

      any  other third party system

    • Wide voltage range design 8~24V for different system

    • Firmware online upgrade to obtain latest system at the first time

    • APB(anti-passing back) function to avoid illegal following

    • Compact design for complex environment integration & installation

    • IP66 waterproof for indoor and outdoor harsh environment use

    • Strong environmental adaptability -20℃~60℃

    • Authorized certification CE, Rohs, CCC, FCC

    • One year warranty time (not being damaged by any man-made factors)


                                                                      R201 Mullion Mount Access Door Reader

Model NameR20101R20102R20103
ISO14443A MIFARE®UID Read onlyMifare secure sector (R/W)


InterfaceRS232, RS485 Weigand26,34, TTL
Operating Voltage Range8-24V DC
Typical Read Range*(cm)>5cm(depending on transponder)
IndicatorBuzzer and multi-color LED( External control)
APBYes, anti-passing back function to connect controller
Operation ModeRFID Card
Panel Connection

45cm pigtail


Operating : -32˚ to 131˚ F (0˚ to 55˚  C)

Storage :  -4˚ to 140˚ F (-20˚ to 60˚  C)

IP Protection
IP66 indoor & outdoor use
Operating Humidity5% to 95% relative humidity non-condensing
CertificationsFCC Certification (US), CE(EU)
Housing MaterialUL94  Polycarbonate

 Specifications are subject to change without notice.

  • Access Control

  • Club/Loyalty System

  • Parking System

  • Printer Secure System

  • Small to large sized organizations


Document Name Release Date Download
R201 Mullion Mount Reader Sep-20-2017 download
