R202 electronic switch box sized reader eliminate extra installation preparation to realize the easy and fast usage and replacement etc.

  • Providing flexibility in credential model choices with multi RF card as ISO15693(CSN) and ISO14443A/B(CSN) Data reverse output / Read&Write

  • NXP original RF chip to enhance high security and avoid cloning

  • Reading distance can up to 5~10cm( Depending on antenna)

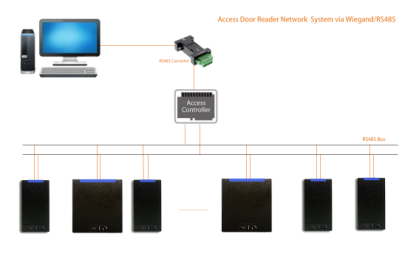

  • Diversified communication interface as RS232,RS485,TTL,Weigand 26,34,40,42,50,56,58 universal wiegand protocol output to flexibly integrate into

    any  other third party system

  • Wide voltage range design 8~24V for different system

  • Firmware online upgrade to obtain latest system at the first time

  • APB(anti-passing back) function to avoid illegal following

  • Compact design for complex environment integration & installation

  • IP66 waterproof for indoor and outdoor harsh environment use

  • Strong environmental adaptability -20℃~60℃

  • Authorized certification CE, Rohs, CCC, FCC

  • One year warranty time (not being damaged by any man-made factors)


                                                                                       R202 Mini Access Door Reader

Model NameR20201R20202R20203
ISO14443A MIFARE®UID Read onlyMifare secure sector (R/W)


InterfaceRS232 RS485 Weigand26,34, TTL
Operating Voltage Range8-24V DC
Typical Read Range*(cm)>5cm(depending on transponder)
IndicatorBuzzer and multi-color LED( External control)
APBYes, anti-passing back function to connect controller
Operation ModeRFID Card
Panel Connection45cm pigtail

Operating: -32˚ to 131˚ F (0˚ to 55˚  C)

Storage:     -4˚ to 140˚ F (-20˚ to 60˚  C)

IP ProtectionIP66 indoor & outdoor use
Operating Humidity5% to 95% relative humidity non-condensing
CertificationsFCC Certification (US), CE(EU)
Housing MaterialUL94  Polycarbonate

 Specifications are subject to change without notice.

  • Access Control

  • Club / Loyalty System

  • Parking system

  • Printer Secure audit system

  • Small-to-large sized organizations


Document Name Release Date Download
R202 Electronic Switch Box Reader Sep-20-2017 download
